Thread: Mortiser photos

  1. #1
    Join Date
    Oct 2006
    Location
    The Heart of Dixie
    Posts
    4,268

    Mortiser photos

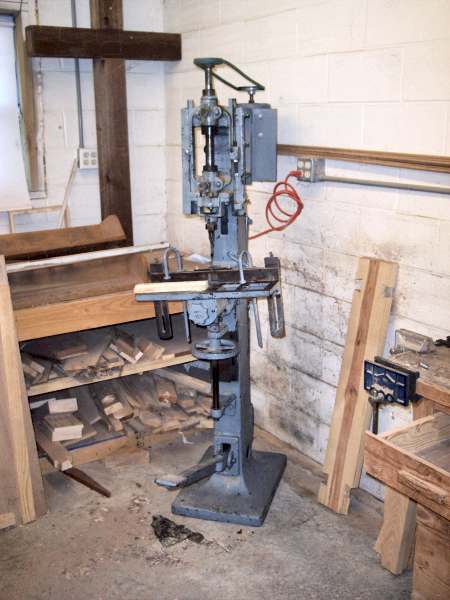

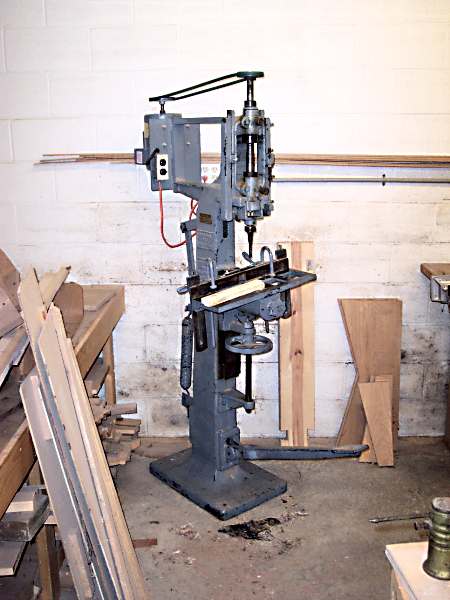

    Here are some photos of the Wysong & Miles mortiser. Got it in place and running. Just need to order the chisels. I am sure at some point I will pull it out and "restore" it. Just can't stand that tattered paint.

    Photos are not that great. Tried 3 time now and they just are not clear. I assume it is the white wall behind it.





    God grant me the senility to forget the people I never liked anyway,
    the good fortune to run into the ones I do,
    and the eyesight to tell the difference.


    Kudzu Craft Lightweight Skin on frame Kayaks.
    Custom built boats and Kits

  2. #2
    Join Date
    Nov 2006
    Location
    Albuquerque, New Mexico
    Posts
    1,099
    Way cool Jeff.
    The pic's look pretty good here.

    How much leg effort does it take to lift the table?... I'm assuming that's how it works...
    "I am enclosing two tickets to the first night of my new play; bring a
    friend...if you have one."
    --George Bernard Shaw to Winston Churchill

    "Cannot possibly attend first night, will attend second..if there is
    one."
    --Winston Churchill, in response




  3. #3
    Jeff,

    Looks good! I don't think it's going anywhere - a wee bit of mass there.
    Are you going to leave the drive set-up as is, or change it out in the future? The reason I ask is I have a DP that was butchered in the past and have been trying different ideas on paper. So far I haven't come up with anything I like so far.

    Wes

  4. #4
    Join Date
    Dec 2006
    Posts
    535
    Quote Originally Posted by Bruce Page View Post
    How much leg effort does it take to lift the table?... I'm assuming that's how it works...
    Looks like there's a link between the foot pedal's vertical rod and the mortising head - in that rectangular mortise in the pedistal. Pretty cool looking machine, though not one for Vaughn to use on a windy day

  5. #5
    Join Date
    Nov 2006
    Location
    Albuquerque, New Mexico
    Posts
    1,099
    Quote Originally Posted by John Downey View Post
    Looks like there's a link between the foot pedal's vertical rod and the mortising head - in that rectangular mortise in the pedistal. Pretty cool looking machine, though not one for Vaughn to use on a windy day
    duh..I see it now.
    I've never seen a real morticer in the flesh.
    "I am enclosing two tickets to the first night of my new play; bring a
    friend...if you have one."
    --George Bernard Shaw to Winston Churchill

    "Cannot possibly attend first night, will attend second..if there is
    one."
    --Winston Churchill, in response




  6. #6
    Join Date
    Oct 2006
    Location
    The Heart of Dixie
    Posts
    4,268
    Yea, the head slides in a set of gibs. The pedal just lowers the head. Most of the mechanics is hide from site. I just have a 5/16? bit and pressure is minimal. LOTS of leverage on that pedal. Anxious to get a set of bits and see how a large hole does.

    Wes. I had intentions of 'improving" it. But after seeing it and looking at it a while, I don't see a good way to do it without a major overhaul. While it's ugly the set up does work well. Thought I might try to put a belt guard just to hide the ugly drive. Out of sight, out of mind type deal.
    God grant me the senility to forget the people I never liked anyway,
    the good fortune to run into the ones I do,
    and the eyesight to tell the difference.


    Kudzu Craft Lightweight Skin on frame Kayaks.
    Custom built boats and Kits

  7. #7
    Quote Originally Posted by Jeff Horton View Post
    Thought I might try to put a belt guard just to hide the ugly drive. Out of sight, out of mind type deal.
    Gee, I've been looking at mine for a few years now. Never thought of that.

    It is cool how well these old machines work when tuned up properly.

    Wes
